The Dryad is a remarkably compact double pulley designed for quick and easy haul systems.
|Ref.||Product name||Weight||Inner sheave diameter||Rope diameter Max||Working load Max||Breaking load||Brass bushing||Sheave material|
|2156||DRYAD||170||6.0||28||1,10||13||0,51||1 kN x 4 = 4 kN||225 LBF x 4 = 900 LBF||24||5396||•||Aluminum alloy||•|

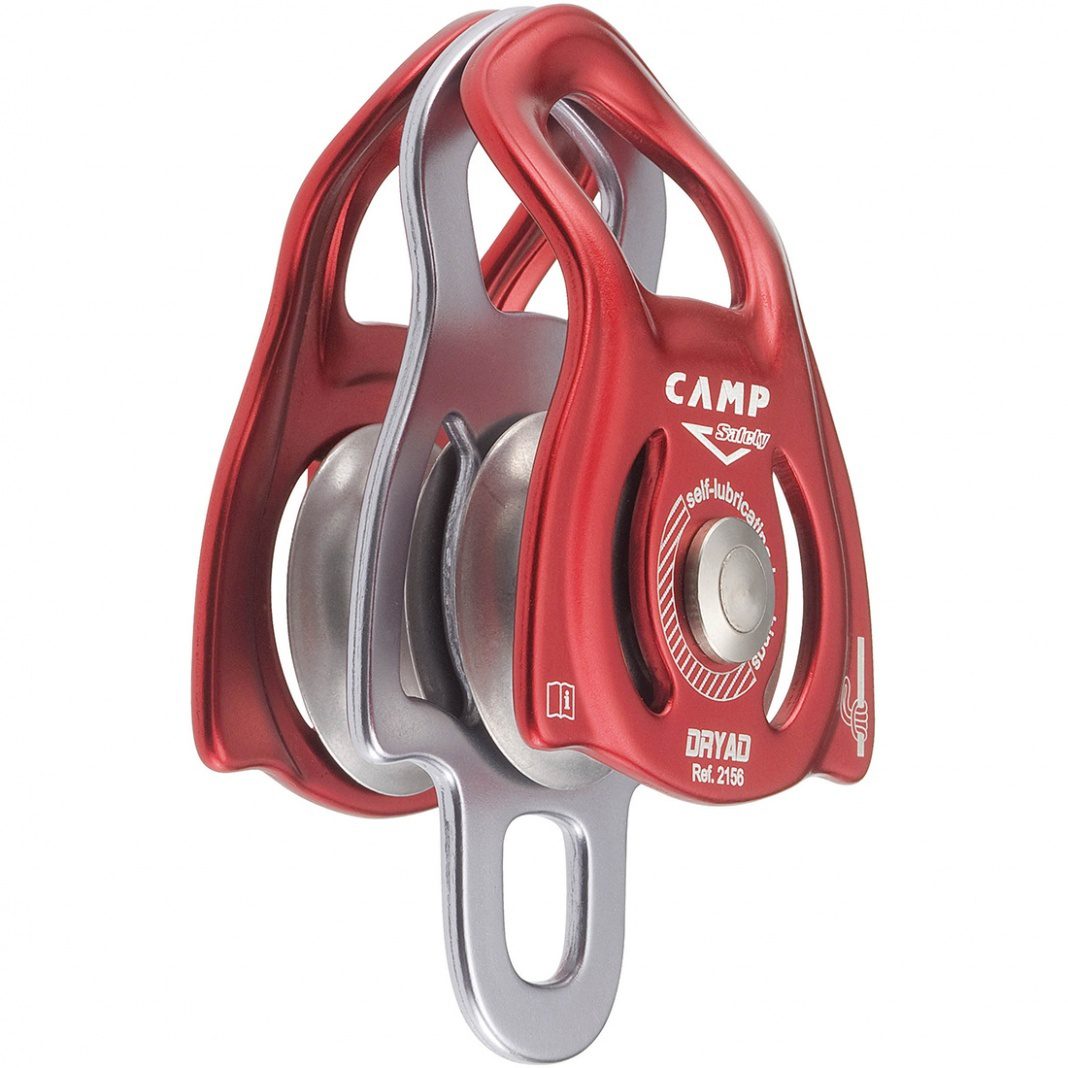

• Compact double pulley
• Self-lubricated brass bushings with 80% efficiency
• Aluminum alloy body and sheaves, stainless steel axle
• For ropes up to 13 mm

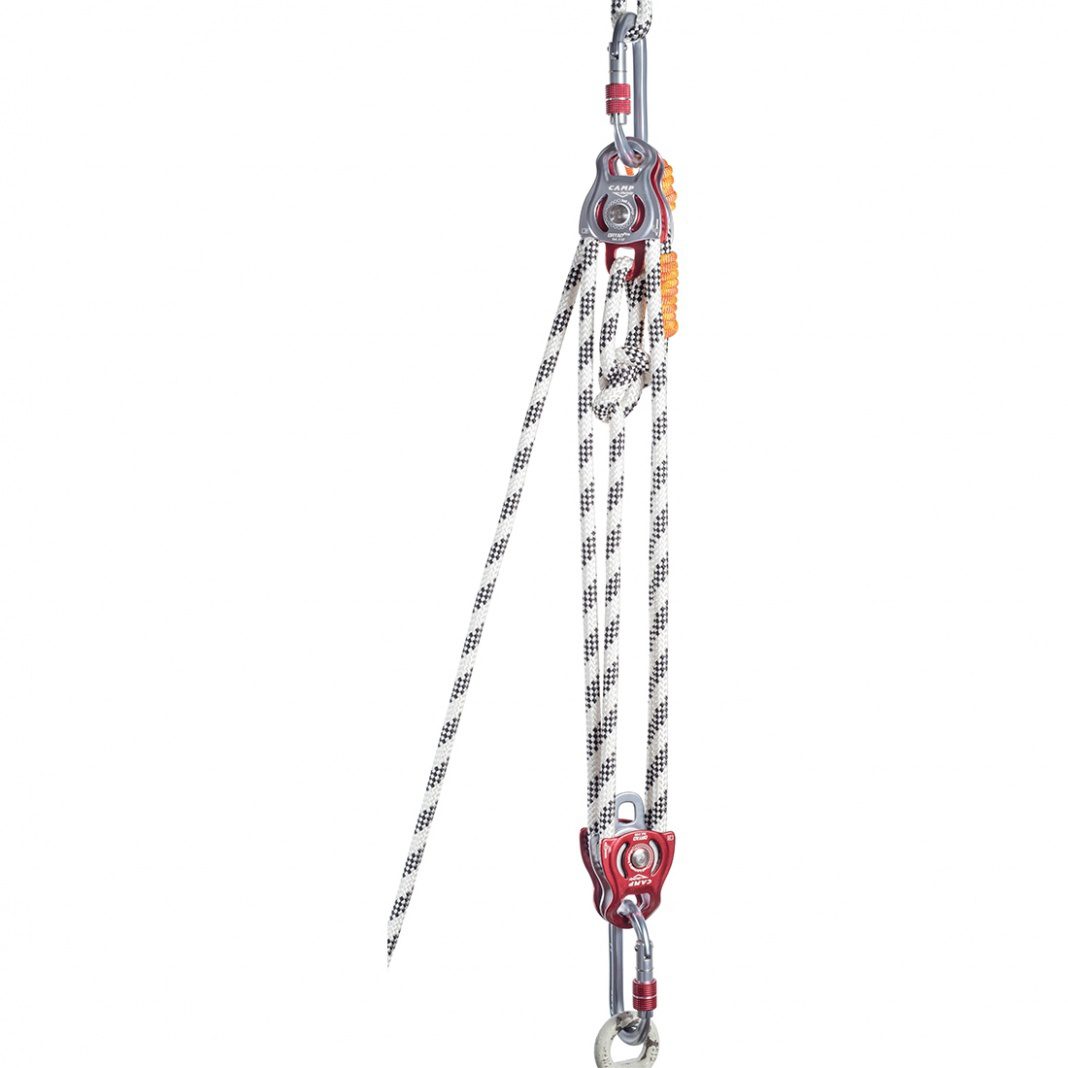

The Dryad is a remarkably compact double pulley designed for quick and easy haul systems. It features a large
primary attachment hole that accommodates two carabiners and a lower becket hole for a single carabiner.
Self-lubricated brass bushings are perfect for light applications at low speed. Prusik knots can be installed on
either side (aramid cord suggested) making it particularly useful for crevasse rescue scenarios.
